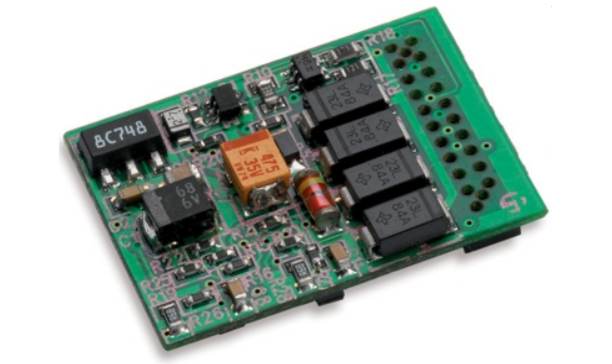

R8245 Hornby Digital Sapphire decoder chip

This is the heavy duty Hornby Digital decoder chip needed for the older Hornby locomotives

This Hornby R8245 Digital Sapphire Decoder chip supports 1 Amp continuous current with 1.5 Amp stall. Low speed ‘gear’ for shunting operations. Size: 23mm x 16.5mm x 6.5mm (Approx). Set amounts of ‘water’ and ‘fuel’ can be stored on the Sapphire providing real time fuel consumption. Burn rates can be selected. All Configuration Variables (CVs) can be changed. This decoder comes with a wiring harness and a 8 - 21 pin adaptor.

Suitable for the older Hornby locomotives fitted with the X.03, X.04 and similar open framed motors and all Ringfield motors.

This R8245 Digital decoder chip can be fitted to non Hornby locomotives as long as the motor specification meets the parameters given below.

Main benefits include:

Built to conform to all relevant NMRA Standards

High frequency back-emf motor control - high frequency to reduce audible noise

Asymmetrical DCC support

Size: Length 23mm x Width 17mm x Height 5mm

Low speed gear for shunting operations

Optional operation on conventional DC layouts

14, 28 and 128 speed steps

Provides IA continuous motor current, 1.5A stall

Four function outputs rated at 200mA each. Total current sum of function outputs = 500mA

Supports advanced consist control and extended addressing

Support for programming on the mainline (operations mode programming)

Support for all form of programming as described in NMRA RP-9.2.3

If you are not sure if this is the right Hornby digital decoder chip for your locomotive then please contact us we can help you.

R8245 Hornby Digital Sapphire decoder chip
This is the heavy duty Hornby Digital decoder chip needed for the older Hornby locomotives

This Hornby R8245 Digital Sapphire Decoder chip supports 1 Amp continuous current with 1.5 Amp stall. Low speed ‘gear’ for shunting operations. Size: 23mm x 16.5mm x 6.5mm (Approx). Set amounts of ‘water’ and ‘fuel’ can be stored on the Sapphire providing real time fuel consumption. Burn rates can be selected. All Configuration Variables (CVs) can be changed. This decoder comes with a wiring harness and a 8 - 21 pin adaptor. Suitable for the older Hornby locomotives fitted with the X.03, X.04 and similar open framed motors and all Ringfield motors. This R8245 Digital decoder chip can be fitted to non Hornby locomotives as long as the motor specification meets the parameters given below. Main benefits include: Built to conform to all relevant NMRA Standards High frequency back-emf motor control - high frequency to reduce audible noise Supports RailCom® Asymmetrical DCC support Size: Length 23mm x Width 17mm x Height 5mm Low speed gear for shunting operations Optional operation on conventional DC layouts 14, 28 and 128 speed steps Provides IA continuous motor current, 1.5A stall Four function outputs rated at 200mA each. Total current sum of function outputs = 500mA Supports advanced consist control and extended addressing Support for programming on the mainline (operations mode programming) Support for all form of programming as described in NMRA RP-9.2.3
1 off - £42.99

If you are not sure if this is the right Hornby digital decoder chip for your locomotive then please contact us we can help you.
