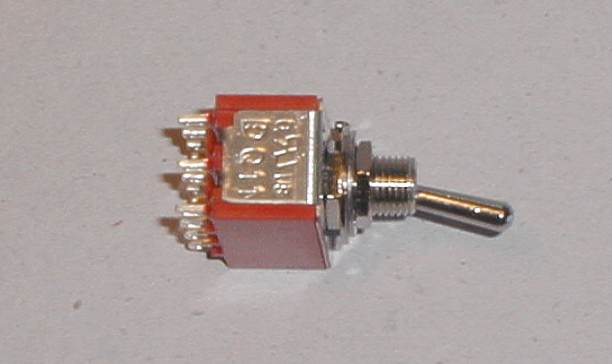

Toggle Switch 4PDT On-On
Control the electrical accessories of your model railway layout with this toggle switch
This toggle switch is On in one direction and On in the other direction. Ideal for electrical items that need power for long periods of time, e.g. lights for buildings and street scenes. This is a Four Pole switch that can switch four isolated circuits at the same time.
- Contact Configuration: 4PDT On-On
- Max Contact Current AC: 2A
- Max Contact Current DC: 5A
- Max Contact Voltage AC: 250V
- Max Contact Voltage DC: 125V
- Terminal Type: Solder
- Tab Blade Thickness: 0.76mm
- Bush Thread Length: 8.88mm
- Contact Current @ Contact Voltage AC Max: 2A
- Contact Current @ Contact Voltage DC Max: 5A
- Contact Material: Gold
- Contact Resistance: 10mohm
- External Depth: 10.54mm
- External Length / Height: 12.7mm
- External Width: 21.59mm
- Height: 12.7mm
- Lever Length: 10.4mm
- Max Switching Power: 0.4VA
- No. of Electrical Operations: 40000
- No. of Poles: 2
- Panel Cut-out Diameter: 6.35mm
- Thread Size: 1/4" x 40 NS
£2.50
